This year Troy-Bilt flew me to Savannah, Georgia to meet the other Troy-Bilt brand ambassadors and to do some volunteer work at a local botanic garden. Watch the video:
Working with Planet In Action, we upgraded a children’s garden at the SACGC Botanic Garden. This was quite the project. As usual I was the least qualified gardener on the team, but I did run the rototiller and watered plants.
Here is an area that will be a outdoor classroom for the kids, surrounded by some edible and fragrant plants.
More good things happening here with a bridge over a wet spot in the garden.
Here I am with Kenny Point, vegetable garden expert. Check out his website, Veggie Gardening Tips.
Go up hills easy! My self propelled mower review of the Troy-Bilt 4×4 XP. Watch the video and then read through my comments below.
Why I Like This Self Propelled Mower:
Great Power
Ease of Steering
Troy-Bilt Quality
Full disclosure here, Troy-Bilt has been a sponsor of GardenFork for a while now. I wouldn’t work with them if I didn’t believe in their products or their company. I’ve met about 20 people who work at Troy-Bilt and have been using their products for years. They are good people and they make good stuff. Here’s a vid about a volunteer project we did recently with Troy-Bilt
OK, back to the 4 WD self propelled mower. It will pull you up hills.
Yes, its that simple. I took this lawn mower over to my neighbor’s hilly cow pasture and went through 12″ high grass mix up a hill with no problems. And that’s with the mower set the mulching mode.
On the mower handle you can choose front wheel drive, rear wheel drive, or four wheel drive, pretty easy. I used it in all modes but found 4WD worked best for me.
Talking about Troy-Bilt quality, it the small things that matter, like how they attach the gas cap to the fuel tank. Ever lost your gas cap? I have.
I suggest buying this mower with the large rear wheels and the Honda engine. If you change the oil in your lawn mower, it can last forever.
Its easy to adjust the height of the wheels for grass cutting height. Note the larger real wheels, makes it much easier to drive around and steer. Its all about ease of use, why make it hard to cut the grass?
Like most, this self propelled mower comes with a bagger and a side discharge and a mulching mode. I like to mulch the grass, so I did not use the bag feature, but its in the box with the mower if you want to make compost from your grass clippings.
I give this mower a thumbs up, its a quality machine, and the 4WD is brilliant. You will like this rig.
Here’s my how to video on doing a lawn mower oil change. Its not rocket science, its actually pretty easy, AND it will extend the life of your mower. Ready? Watch the video and scroll through the instructions below:
Lawn Mower Oil Change, Step By Step
Check the manual to see what kind of oil your engine uses. Most use 30W, but just check, OK? By changing the oil, you are already helping the engine last much longer. Do a lawn mower oil change a few times a year and your mower could last forever, mbe!
Run the mower to warm up the engine. This gets the oil hot and the debris that settles up and moving. Turn off the mower.
Place plastic food wrap over the gas tank fill and screw the cap down. Not so tight that you can’t get it off again, but snug. Now we are going to gently turn the mower on its side. Position a plastic tub such that when you tilt the mower on its side, the oil fill tube will pour into the tub.
If your mower has an oil drain plug instead of a fill tube, you will have to tilt the mower on its side, remove that plug, then place the mower over the bucket. This may take some finesse and a friend to help.
See how the gas cap is on the high side of the tilt?
Be sure to tilt the mower so that the gas cap is on the higher side of the mower, so no gas could leak out if the cap leaked. Tilt the mower into the bucket and let it sit while the oil drains out. You can prop up the mower and let it sit for a while.
Get your fresh oil ready and a funnel. You can make funnel out of a piece of paper if need be. Tilt the mower back onto its wheels, and slowly add the new oil into the oil fill tube. Use the dipstick to make sure there is just enough oil.
Do Not Over Fill The Oil. Bad things can happen.
AND recycle the used oil. Take it to a quick lube shop or a car repair shop, they will recycle the oil. Don’t dump it in the woods or a stream, OK?

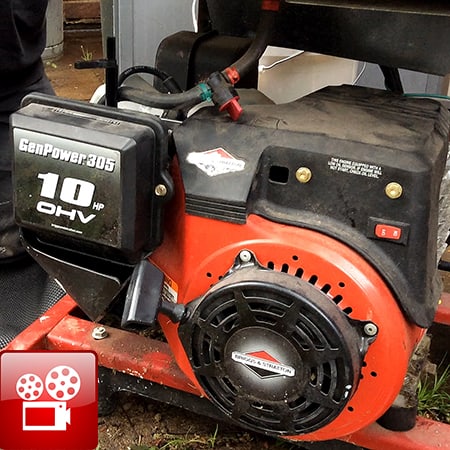

If your generator wont start, I bet the carburetor is toast, here’s how to replace it. First, watch our how-to video.
When Your Generator Wont Start:
I bet the last time you ran your generator was over a year ago. In that case, the carburetor is full of old gas that has broken down into gunk, and clogged the carb. Now, you can take apart the carburetor and clean it, even buy a rebuild kit. But for most of us, this is a higher level of skill than we posses. We can, however, buy a replacement carburetor and install it. You have the skills to do this, as long as you watch GardenFork, I bet.
First step is to order a new carburetor (here is one example, find one that matches your engine). Find the engine model number stamped on the engine somewhere. This may be several lines of numbers, and they are all relevant. If you can, photograph the numbers with your smart device. On Briggs & Stratton engines, the numbers are often on the valve cover. The numbers on the generator chassis are probably not the ones you need, find the engine numbers. Search online for “engine serial number location (name of your generator)”. I have found that there is sometimes one replacement carb that is used on many small engines for a certain brand. I had to search a bit to make sure I was getting the right carb, but the comments made by other purchasers really helped.
Your replacement carburetor may come with several choke handles, as the new carb fits several models of engine. I had to cut a small piece of metal off the back of the air filter mount to allow the new carb choke handle to fit properly. Not a big deal.
Check out the instructions that come with the carb. You may need special torx bits. I did, and only learned this after I started the job. Fun.
To remove the old carburetor, start by draining the old gas out of the fuel tank. Turn off the fuel line that runs to the carburetor, pull the hose off the carb, and put it into a gas can. Turn on the valve, open the fuel tank cap, and drain. Don’t dump this gas in the woods or a creek, OK?
Big thing to remember: take photos throughout this process, so you can refer to how it all came apart, OK? Remove the spark plug wire from the spark plug. This may seem unnecessary, but its a good practice to get into, especially if you have a electric start generator… Now remove the fuel line from the carb and remove the air filter and the frame that holds it to the carburetor.
The carb may have what look bolts or nuts that are star shaped, these are usually called Torx nuts. You may already have a set of tools to remove these, or you can borrow them or you can buy them.
Remove the governor control rod and spring assembly. A new rod and spring may come with your carb, use the new one, but hold onto the old one in case there is an issue. The rod may be concealed under a plastic or metal shroud, it may take some time to remove it.
Remove the carb from the engine carefully. There is at least one gasket that may tear, and you may not have a new one to replace it. Some gas may drip out of the carb, that’s ok.
The new carburetor will go back in about the same way the old one came out. The hardest part is getting the governor control rod and spring reconnected. There should be a diagram that comes with the new carb showing how it connects.
Also the choke handle may be different or require a little cutting to get it fit. The carb I bought came with several choke handles, and you may have to remove and replace the one that is installed on the new carb.
While you are doing the generator repair, you might as well put in new spark plug and change the oil. Spark plugs die out suddenly, and you’re already deep into small engine repair mode, this will take 2 minutes.
If your generator wont start and has been sitting, I bet the oil is the color of mud. This is a bad thing. Muddy oil can mean there is water in the oil, and will ruin the engine. Take the waste oil to a oil change or car repair shop, they will recycle it for you. Don’t dump it in your yard.
Going forward, always use gas stabilizer in your small engines. Then you don’t have to wonder what to do when your generator wont start. Whenever I fill up my gas cans, I immediately add in the gas stabilizer. My engines start on the first pull, even after a winter in the garage.
Learn how to sharpen lawn mower blades and cut your grass better with our mower video. Then read through the steps below and you’ll be set to mow the grass.
Key Points To Sharpen Lawn Mower Blades:
Be sure to put some plastic food wrap under the gas cap so it seals before you tilt the mower.
Whatever side of the mower that has the gas cap should be tilted up.
Wear safety gear when sharpening the blade, save your eyes and ears.
The video shows best how to tilt the mower so the gas doesn’t spill out, its easier to show than to put into words, but I trust you get it. Some gas caps have vents in them, hence the need for the plastic wrap to seal it.
Use a block of wood and a clamp set against the rim of the mower deck to keep the blade from moving while you remove the bolt. Do not use an adjustable wrench, use a socket or wrench, or you may round off the bolt.
Clamp the blade into a vise and use a right angle grinder to sharpen the blade, you want to do your best to keep the angle of the blade the same. If you do not have a grinder, you can buy a mower blade sharpening stone that attaches to your corded drill.
The most important part when you sharpen lawn mower blades is to balance the blade after sharpening it. If the blade is off balance, it will wobble when its cutting and damage the engine. Bad things will happen.
When attaching the blade to the mower, do not over tighten the bolt, hand tight and then a little more. Be careful not to bend the blade against the clamp when tightening the bolt.
The engine will take several pulls to start, don’t worry, the gas has to settle in the carburetor again. It will smoke a bit when it first starts. I sharpen my blade several times a year, it makes for a healthier lawn and a cleaner cut.
What are your thoughts on blade sharpening? Let me know below.
After using the Flex system all summer, here is our Troy Bilt Flex review video. We used the lawnmower and pressure washer attachments with the Flex power base around the house, here’s our take on it.
Note: This is a Sponsored Post sponsored. Troy Bilt sent me the Flex and compensated me for my time, but all opinions are my own
The GardenFork Troy Bilt Flex Review
I like the Troy Bilt Flex concept of one engine that connects to multiple pieces of outdoor power equipment. Its much easier to maintain one engine than 4 or 5 of them every year.
The power base has a 208cc engine with ample power to run everything that attaches to it. I like that the engine has an oil dipstick and an easy oil drain plug, plus a solid gas cap. The wheels are air filled knobby tires and the power base is self propelled. The handles fold back onto the unit for space saving storage, a nice feature.
The lawn mower has a 28″ wide deck, which is 8″ wider than most walk behind mowers. The front wheels are solid and can be set to free wheel or lock straight for when you are mowing on inclines. Two blades under the deck work nicely. I used the deck in mulching mode, but you can set it for side discharge or you can order a grass collection bag for it.
The pressure washer is quite nice, it will do everything I will ever need a pressure washer to do. It has 5 quick connect nozzles and can generate 3,000 psi of power. You can attach a hose to the pump for cleaning solution injection. I really like that it has a 40′ hose on it. I need to wash the clapboard on our 2 story house, and I don’t have to buy an additional length of hose to reach the 2nd story. This will come in handy if you are washing down large equipment.
The Troy Bilt Flex also has a snowblower and leaf blower attachments that we did not test. I don’t blow our leaves, and it being summer, well, no snow.
Here’s my Troy Bilt Flex review after using the Flex Power Base and the Wide Area Mower and Pressure Washer around the GardenFork Testing Grounds. The testing grounds, otherwise known as my yard, are typical of what your average homeowner has: grass, trees, some weeds, dogs.
Full Disclosure: Troy Bilt has compensated me for my time and provided me with their products. Opinions are mine own, and I don’t work with companies that aren’t a good fit for me or the GardenFork audience. More info here.
I’ve known the Troy-Bilt brand for many years. Their rear tine rototillers are the best, I think, and make life easy, especially if you’ve ever wrestled with a front tine tiller.
So when I was asked if I’d like to try out Troy Bilt’s new Flex system, I signed on. The delivery truck brought 3 boxes of Flex components, and I got 4 free wood pallets from the truck driver. Neat.
Attachments snap on to Flex Power Base
The Troy-Bilt Flex Review
Here’s the way I describe the Flex system: Its all based on a power unit that a bunch of different tools snap onto. The Flex base is like the rear half of a walk behind self propelled snowblower with a PTO out the front that snaps into several different attachments. I like the idea of having one power source and a bunch of outdoor equipment attachments. So I only have to maintain one engine, not an engine for every outdoor power tool in the garage. Plus, you save on garage storage space – the attachments have a smaller footprint – making it all easier to store.
Power Base on left, Mower deck on right
If you’ve ever been on a working farm, all the tractors have a PTO (power take off) shaft on the back and sometimes front to run different machines, this is the same concept for the Flex line.
Right now Troy-Bilt has mower, snow thrower, pressure washer, and leaf blower attachments for the power base, I’m told a log splitter and a few other attachments are in the works. I’d really like that log splitter, it would make fast work of the pines I’ve been dropping for next winter’s sap season.
I chose the Wide Area Mower and the Pressure Washer attachments to test out. The back of my clapboard house has mold growing on it, so this was perfect. We’ll be making a video showing the power washing and mowing this summer.
First I snapped on the mower deck.
What I like about the Troy-Bilt Flex Wide Area Mower:
It feels solid. This is kinda intangible, I know, but you know how some mowers just feel cheap? This doesn’t, it has good feel and nice power.
The power wheels are better, they are pnuematic, meaning they have air in them instead of solid plastic wheels of many self-propelled walk behinds. The rig powers nicely through the lawn. The drive system is robust, unlike many self-propelled mowers that have a small belt that powers the wheels.
The mower deck is 28″ wide, so I’m already saving time from my 20″ wide walk behind mower. Rough math tells me that every 3 passes with the Flex is 4 passes with my smaller mower.
The front wheels spin free, so you can make surprisingly tight turns for such a large mower deck. You can also lock the wheels for when you are mowing on hills for better control.
Front wheels free spin or lock straight
The Flex powers through the yard at a nice clip with enough power to go up a moderate hill. The lever that controls the speed of the wheels takes a few minutes to master, the low end of the range is short, so when you grab the lever, it starts moving faster than you expect at first. You should wear ear protection, the Flex mower isn’t super loud, but it all adds up.
I then worked with the Pressure Washer attachment. Here’s where the advantages of the Flex system become clear. I don’t have to own a pressure washer that has its own engine, this pressure washer just snaps onto the Flex base. One less engine to maintain.
The pressure washer comes with 5 spray nozzles and 40′ of hose, plenty to get up to the 2nd floor of your house and wash the siding. It pumps 3,000 psi, which is more than enough for what you all are doing around the house. I used a friend’s power washer a while back and it was made mostly of plastic, this isn’t. Plus I like the hose rack, its large enough to store all of the hose, unlike some other washers I’ve used where the hose storage never works.
I know GardenFork is all about ‘done is better than perfect’, but sometimes the details matter, and the photo below makes that clear to me. When I put gas in the Flex tank, I saw the cap was chained, and the chain was metal, not plastic. It’s not something many would notice, but that tells me the people who designed this designed it to last.
I’ll be doing a Troy Bilt Flex Review video this summer, where we power wash one of the plywood boats, wash the back of the house, and power through my lawn in 2/3 the time it takes with the smaller mower I own.
UPDATE: here’s the video review of the FLEX:
To read more about the Troy Bilt Flex and other outdoor power equipment, here is their website, plus:
Kim of Sand and Sisal reviewed the Troy Bilt 4 cycle trimmer that has a ton of attachments. I got to use this gear when we went to meet Troy Bilt, and its a nice set of tools.
Fix a broken lawnmower wheel: watch our lawn mower repair how to video and get back to mowing you grass. The tire on our mower broke, here’s how to fix it.
When the lawnmower broke, the camera operator, who happens to love mowing the lawn, thought we needed to buy a new mower! No, for about $10, we fixed our grass cutting machine, and the camera operator is now out cutting the grass before dinner. Not a bad deal for me…
The lawnmower wheel repair was not difficult. All you need is a metric or standard wrench, depending on the make of the machine. An adjustable wrench will work as well, but the correct size wrench is better. Pay attention to how the tire is attached to the mower, remove the nut holding it to the threaded axle, along with any washers that may be with it. Take a picture with your cell phone as you disassemble the nut and tire unit, it will help with putting the whole thing back together.
Take the tire to your local hardware store to match it to a replacement. Our wheel was an 8″ diameter, which seems pretty standard for push mowers.
Bring back the new one and slide it on. There may be a metal or plastic bushing inside the wheel so the tire can fit on different diameter axles. Secret tip: use some anti-seize paste on the axle threads before attaching the wheel. If you ever have to remove the wheel again, this will make the job much easier.
